51.2 V classFlagship
High-Voltage Series · High-voltage storage with smart CAN BMS
PBHV1280100128 V 100 Ah LiFePO₄ battery
A 128 V high-voltage LiFePO₄ pack storing 12.8 kWh, with a smart master–slave CAN BMS (CAN 2.0, 500 kbps) for high-voltage hybrid inverters and commercial energy storage. Installation and service by authorised personnel only.
- Energy
- 12.8 kWh
- Voltage
- 128 V
- Capacity
- 100 Ah
- Max discharge
- 12.8 kW
- Smart CAN BMS
- 5 year digital warranty
- Made in India
Highlights
What you get with the PBHV1280100
- Smart CAN BMS — master–slave architecture
- CAN 2.0 communication at 500 kbps
- 12.8 kWh and up to 12.8 kW in one pack
- High performance · Zero maintenance · Longer life
Ideal for
- High-voltage hybrid inverters
- Commercial & industrial storage
- Factories and warehouses
- Hospitals and campuses
Applications
Specifications
Datasheet values
| Model | PBHV1280100 |
|---|---|
| Chemistry | LiFePO₄ (lithium iron phosphate) |
| Nominal voltage | 128 V |
| Rated capacity | 100 Ah |
| Rated energy | 12.8 kWh |
| Recommended charging current | ≤ 50 A recommended |
| Max. discharge power | 12.8 kW |
| Discharging current | 100 A max (≤ 50 A recommended) |
| BMS | Smart CAN BMS, master–slave |
| Communication | CAN 2.0, 500 kbps |
| Dimensions (L × W × H) | On request |
| Warranty | 5 years |
Estimated backup
80% usable energy, 90% inverter efficiency, constant load.
| Load | Backup | Relative |
|---|---|---|
| 1.5 kW | ≈ 6.1 h | |
| 2 kW | ≈ 4.6 h | |
| 3 kW | ≈ 3.1 h | |
| 5 kW | ≈ 1.8 h | |
| 8 kW | ≈ 1.2 h | |
| 12.8 kW | ≈ 0.7 h |

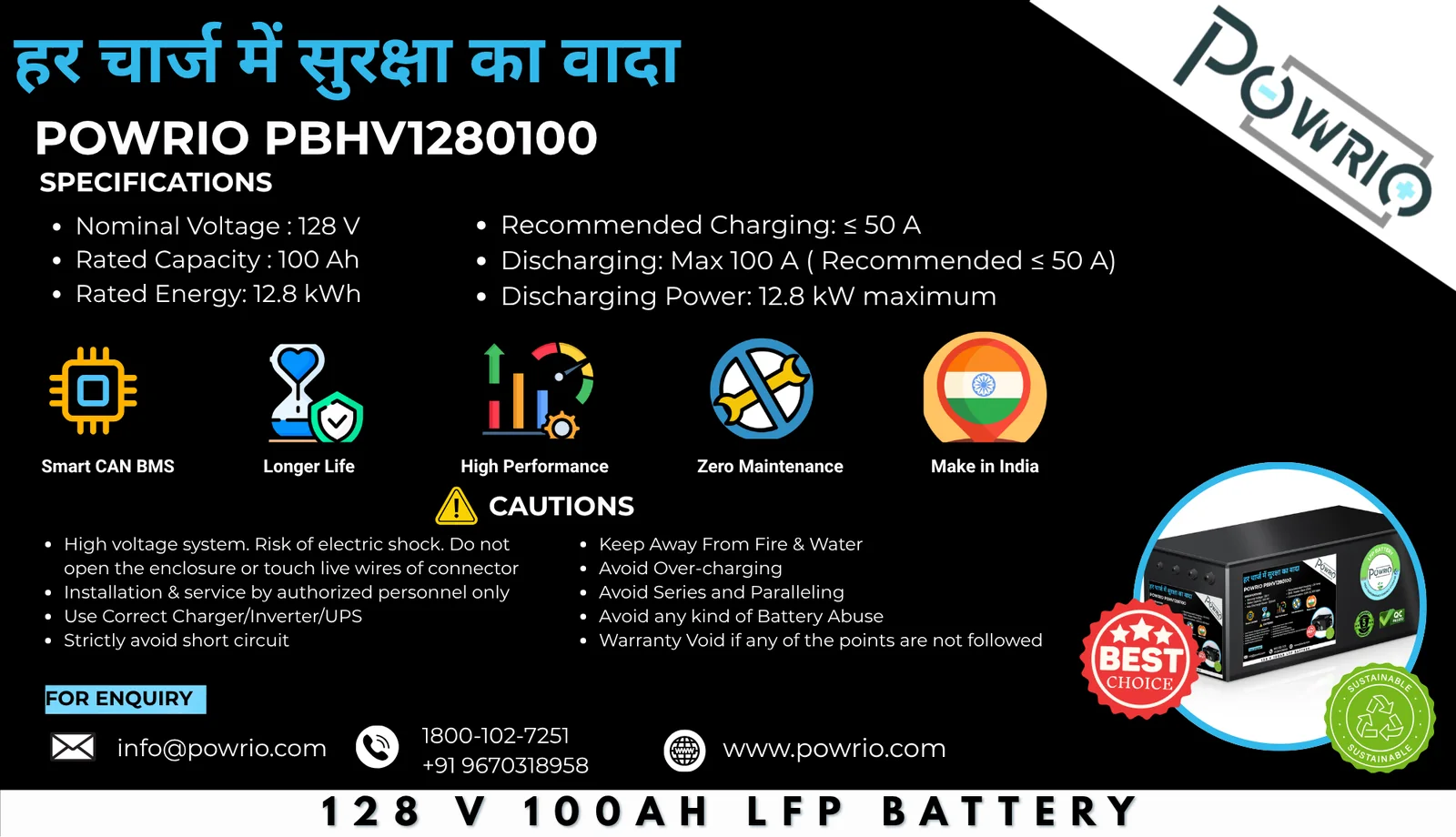

On the pack
The label, exactly as printed
Every PBHV1280100 carries this sticker with its specifications, protection features, cautions and support numbers.
Cautions on the label
- High-voltage system: risk of electric shock. Do not open the enclosure or touch live wires of the connector.
- Installation and service by authorised personnel only.
- Do not disconnect any connector while the battery and inverter are running — switch off the load first.
- Do not open any screws or PG glands, and do not place weight on the battery.
- Do not discard with household waste — recycle as e-waste.
- Use a proper charger / inverter / UPS
- Keep the battery at room temperature
- Recharge within 60 days if not in use
- Avoid short circuit
- Avoid mechanical shock
- Keep away from fire and water
- Avoid over-charging
- Do not connect batteries in series or parallel
- Warranty is void if the battery is abused
Protection
Smart CAN BMS, high-voltage safety.
Smart CAN BMS
Master–slave management of the whole pack
CAN 2.0
500 kbps link to the high-voltage inverter
Authorised install
Sealed enclosure, serviced by authorised personnel only
A 5 year warranty, on record
Register your PBHV1280100 online after installation. You get a certificate number immediately and a PDF certificate with a QR code anyone can verify.
FAQ
PBHV1280100 questions
Can't find your answer? Our engineers reply on WhatsApp and phone during business hours.
Related
Compare with similar packs
Get a quote for the PBHV1280100.
Share your load list, inverter model or project brief. Our engineers will recommend a pack and send a quote — usually within one working day.
